Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: MASTER
  • Model Number: SN40,SF40,SF40S
  • Open Style: Automatic
  • Position: Exterior
  • Surface Finishing: Finished
  • Type: Garage Doors
  • Door Material: Aluminum Alloy, Aluminum Alloy
  • Product Name: Aluminum alloy glass garage doors
  • Panel Width: 430-550mm, adjustable
  • Panel thickness: 3mm PC sheet,4mm tempered glass or 5mm mirror glass
  • Frame Color: Black, White, Brown, silver anodized
  • Motor: industrial electric motor
  • Surface Treatment: Embossment
  • Function: Anti-theft,noise insulation,heat insulation
  • Hardware system: EU standard
  • Tracks: Single track with L profile/standard double track

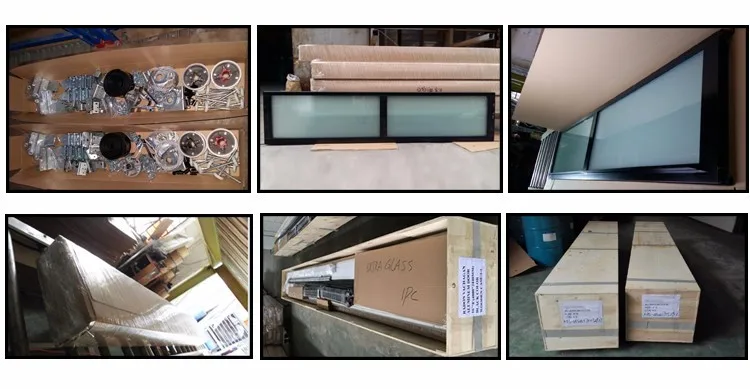

Packaging & Delivery

Packaging Details Aluminum alloy glass garage doors Package:
Standard export carton box for FCL.
Wooden case needed for LCL
Delivery Time Shipped in 30 days after payment

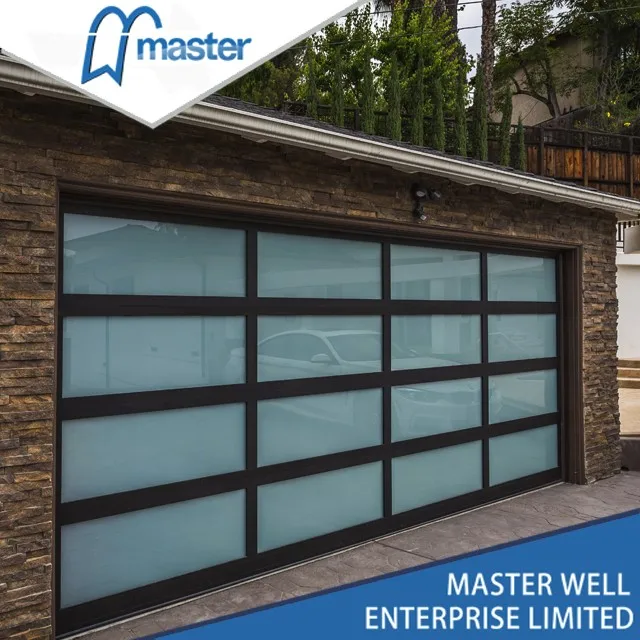

Aluminum alloy glass garage doors

SPECIFICATIONS

1.Aluminum polycarbonate transparent sectional door

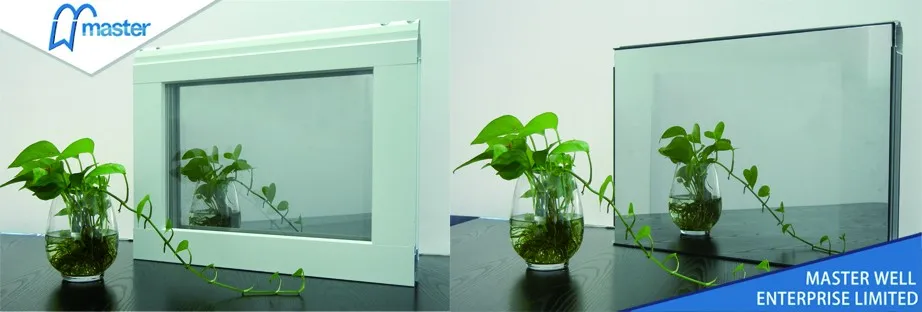

2.3mm PC sheet or 4mm tempered glass or 5mm mirror glass
3.Safety & durable



DOOR PANEL

A. Unique transparent, elegant anodized aluminum frame

B. Thickness: polycarbonate thickness between 3mm to 9mm,tempered glass,mirror glass,single or dual pane are available

C. UV proof

D. Impact-resistant and burglar-retardant

E. resistance to wind load :Class 3   Water-tightness:Class 3   air permeability:Class 2

F. more options are available: combination of materials in polyurethane and polycarbonate with  the anodized aluminum frame,highly robust and durable hardwares

G.all the sections can be replaced easily

H.Smooth running with low noise

I.an effect of day-lighting, firm and smooth and could be used for a long time without maintenance

J.Mirror glass garage door with automatic motor control

K.White, Brown or Black color for aluminum frame



DOOR MOTOR

Garage gate Opener:

Decording:

Rolling code

Input power:

AC220V,50HZ/AC110V,60HZ

Motor power:

DC 24V

Radio frequency:

433.92MHz

Output torque:

6N.M,8N.M,10N.M,12N.M,15N.M

Max lifting height:

3.5m

Work environment:

-20-70

Protection class:

IP20

Components:

1 opener, 2 transmitters, guide and other mounting brackets

Options:

Wired/wireless Wall switch, Photocell, Pin code lock, Battery Back-up

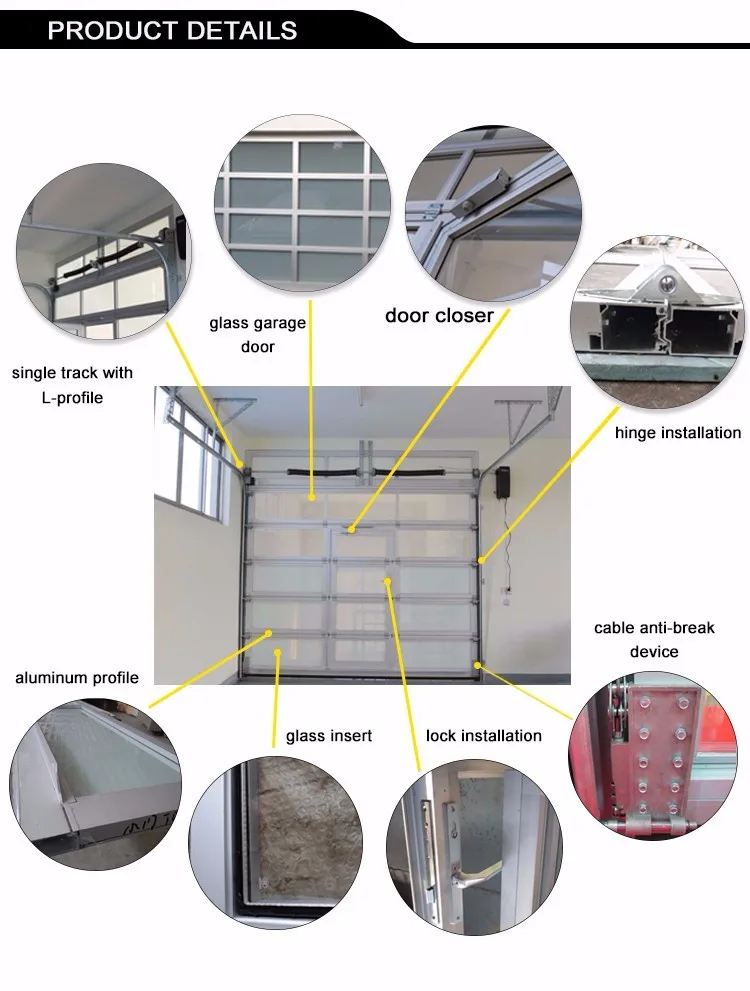

TRACKS&ACESSORIES

1) Standard Single Track (SST): 1 pair vertical track, 1 pair horizontal track, needs min headroom 350mm;

2) Standard Double Track (SDT): 1 pair vertical track, 1 pair horizontal track, 1 pair LHR horizontal track, needs min headroom 150mm;

3) L Profile support with Single Track (LST): 1 pair vertical track, 1 pair horizontal track with L profile support, needs min headroom 350mm;

4) L Profile support with Double Track (LDT): 1 pair vertical track, 1 pair horizontal track, a pair LHR horizontal track, with L profile support, needs min headroom 200mm

5) L Profile support with Double Track & ABS curve (SLDT) : 1 pair vertical track, 1 pair horizontal track, a pair LHR horizontal track, L profile with ABS curve, needs min headroom 200mm

6) Emergency lock for manual operation when power off

7) Torsion spring, or Tension spring

8) Hinges, Cable drum with cable, Central bracket with bearing, Mounting brackets and other accessories for a complete set







FAQ

Q1: What is your MOQ?

A:  Our min order is one 20ft fll container. Sample order is available but we there will be sample charge. We also suggest wooden cases package for protection during shipment.

Q2: What is the Max available size of the panels?

A: The max length of panels can be 11.9M to suit the 40ft container. The max width of panels is 550mm.

Q3: Do you have CE certification?

A: Yes, we do have CE certification. We have CE for our complete automatic garage doors.

Q4:  Can I get a sample of garage door for quality check?

A: Sample is available.

Q5:  How can I get a price of needed garage door?

A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.

Q6:  What kinds of payment you accept?

A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

Q7:  We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.

Q8: I am a small wholesaler, do you accept small order?
A: It's no problem if you are a small wholesaler, we would like to grow up with you together.
