Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Master
  • Model Number: SF40S/SF40/SN40
  • Open Style: Automatic
  • Position: Garage
  • Surface Finishing: Finished
  • Type: Garage Doors
  • Door Material: Steel
  • Product: CE Approved Remote Control electric garage door wholesale
  • Standard solid color: White RAL9016, Brown RAL8014, Silver, Ebony, Light beige
  • Stocked wooden imitation color: Gold oak, Dark oak, Walnut, Mahogany
  • Material: Steel with PU foaming
  • Construction: Steel - Foam - Steel sandwich construction
  • Section 1: SF40S or SF40, Finger protection panel
  • Section 2: SN40 Non-finger protection panel
  • Panel design: Casstte, Stripe lines, Fold, Flush
  • Surface: Woodgrain, Orange peel, Flush
  • Certification: CE, ISP9001

Packaging & Delivery

Packaging Details Carton with Wraped film / Wood case for CE Approved Remote Control Automatic garage door wholesale
Delivery Time Shipped in 25 days after payment

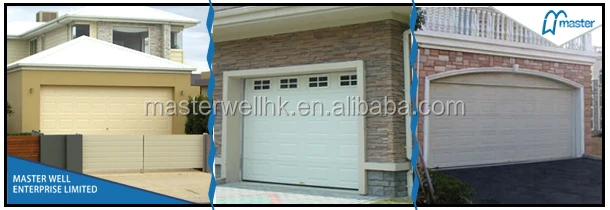

  CE Approved Remote Control Automatic Electric garage door wholesale





PU foamed panels

40mm Finger protection panels

40mm Non-finger protection panels

50mm Non-finger protection panels for industrial use

1) Material: Galvanized steel with PU foaming inside
2) Steel thickness: 0.35mm (Standard)
3) Construction: sandwich/ steel-foaming-steel/ thriple layers
4) Surface finishes: wood grain, orange peel, no grain

5) Design: Cassette, Stripe lines, Fold



6) Panel length: 12000mm at max
7) Panel width: 430mm-550mm, adjusted
8) Standard color: White RAL9016
9) Stocked solid color: Brown RAL8014, Anthracite grey RAL7016, Silver RAL9006, Light beige RAL1019, Ebony RAL9004, Red RAL3000, Blue RAL5015

10) Stocked Timber color: Mahogany, Gold oak, Black walnut, Dark oak

Accessories

1) Standard Single Track (SST): 1 pair vertical track, 1 pair horizontal track, needs min headroom 350mm;

2) Standard Double Track (SDT): 1 pair vertical track, 1 pair horizontal track, 1 pair LHR horizontal track, needs min headroom 150mm;

3) L Profile support with Single Track (LST): 1 pair vertical track, 1 pair horizontal track with L profile support, needs min headroom 350mm;

4) L Profile support with Double Track (LDT): 1 pair vertical track, 1 pair horizontal track, a pair LHR horizontal track, with L profile support, needs min headroom 200mm

5) L Profile support with Double Track & ABS curve (SLDT) : 1 pair vertical track, 1 pair horizontal track, a pair LHR horizontal track, L profile with ABS curve, needs min headroom 200mm

6) Emergency lock for manual operation when power off

7) Torsion spring, or Tension spring

8) Hinges, Cable drum with cable, Central bracket with bearing, Mounting brackets and other accessories for a complete set



Garage door opener

1) Rolling code
2) Input power: AC220V, 50HZ/ AC110V, 60HZ

3) Motor power: DC 24V
4) Radio frequency: 433.92MHz
5) Output torque: 8N.M, 10N.M, 12N.M, 15N.M
6) Max lifting height: 3.6m
7) Working environment: -20°C to +70°C
8) Protection class: IP20
9) Standard equipment: 2 transmitters, steel guide and other mounting brackets
10) Options: wall switch, photocell, wireless pin code lock, back-up battery



Our Services

 Competitive Advantage of us:

1. Low MOQ: One set is available for checking our quality first conveniently.

2. Good Quality: Your client satisfied on our quality. You can get good reputation from your market and obtain more orders.

3. Good Service: Our professional service before and after sale.

4. The reasonable price

5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

6. OEM is welcome

7. Rot-proof rubber seal for maximum light and air sealing between the sections.

8. Energy saving heat insulation due to high-strength PU rigid foam. The special foam meets the high quality requirements of industrial doors.

9. High-level resistance to bending and twisting. Secures garages against burglars and makes your door wind and weather proof.

10. Robust surface, easy to clean, the finished surface is extremely robust and easy to maintain.



Available Options




Company Information

 Factory Views



Packaging & Shipping

FAQ

Q1: What is your MOQ?

A:  Our min order is one 20ft fll container. Sample order is available but we there will be sample charge. We also suggest wooden cases package for protection during shipment.



Q2: What is the Max available size of the panels?

A: The max length of panels can be 11.9M to suit the 40ft container. The max width of panels is 550mm.



Q3: Do you have CE certification?

A: Yes, we do have CE certification. We have CE for our complete automatic garage doors.



Q4:  Can I get a sample of garage door for quality check?

A: Sample is available.



Q5:  How can I get a price of needed garage door?

A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.



Q6:  What kinds of payment you accept?

A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.
