Quick Details

  • Place of Origin: Jiangsu, China (Mainland)
  • Brand Name: Master
  • Model Number: Fast Rolling
  • Open Style: Automatic
  • Position: Industrial
  • Surface Finishing: Finished
  • Type: Security Doors
  • Door Material: pvc
  • open style: remote control
  • certificate: CE approved
  • Material: pvc
  • Color: customized
  • Size: Customized Size
  • Application: warehouse, factory
  • Opening direction: Vertical

Packaging & Delivery

Packaging Details European Style fast moving rolling shutter:Packed in woodn case or carton
Delivery Time Shipped in 15 days after payment
Product Description

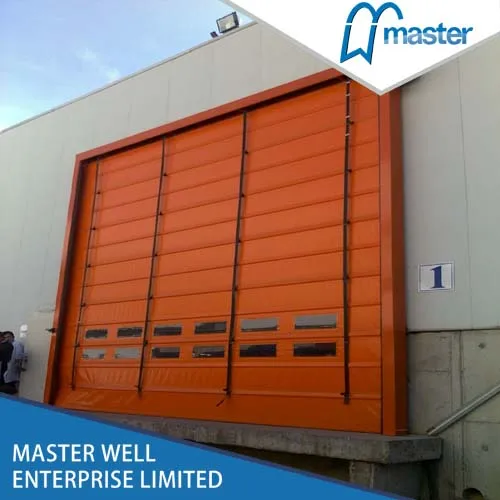

Pvc fast moving stacking door

Specification

Product  name

   High speed roller shutter door/fast door/industrial door

Area of use

Indoor / outdoor

Speed

Opening speed: 0.8m-1.0m/s(adjustable),1000-1500 times/day

Security

1.      Infrared ray induction system installed under the door frame

2.      Pressure sensor installed under the curtain, and the falling door can ascend automatically with 2 KGS pressure.

3.     Can Install automatic derail system according to window pressure

4. Control system uses low voltage power

Seal function

Curtain bottom can be connected with different unevenness ground surface. Pipe slide of door frame are equipped with sealed strip.

Door structure

Door frame: 2.0mm galvanized steel sheet (cold-roll steel sheets)and baking varnish / 2.0mm stainless steel / 3.5mm industrial aluminum alloy

Color

Yellow / white / red / blue etc

Perspective model

Transverse transparent vision panels

Driving system

SEW motor(Germany brand),380V,50HZ, IP55 Power:0.75KW-----1.50KW

Control box

Frequency changer(Japan brand),PLC Programming controlling,circuit breaker,fuse gear and relay can be compatible with common protector.

1.Control System: It's A Special High Speed Door Control System, Compatible With Any Other Common Equipments, Controlled By Button Switch, Also Reserve The Private Port For Interlock Switch, Radar Switch, Magnetic Switch And Other Switches



2.Motor:Germany Grand Brand, High Frequency(220V/0.75KW /One-Phase), With Electromagnetic Brake And Deceleration System



3. Door Frame: Integrated Structure, 2.0mm Thickness Galvanized Sheet With Anti-static, Powder Coating; The Track Use Double Row Hairbrush Sealing Struction, More Useful To Dustproof And Mothproof



4. Door Curtain: 1.0mm Belgium Sioen Brand Dustproof And Durable PVC Material, Several Color Can Be Chosen; 60T Aluminum Alloy Rib In The Middle, It Can Prevent 6Level Wind;  Two Rows 1.2mm Thickness Perspective Windows Can Be Added In The Curtain; Heavy Isolated Fabric On The Bottom,Make It More Tight.



5.Encoder: Multi-Ring Absolute Encoder, High Precision, Inductance Approach Switch, Transistor Out, Won't Be Effected By Magnetic Field, Maintained Easily



6. Safety System:

(1). Photoelectric Sensor: Korea Autonics Brand, With Infrared Photoelectric Sensor Installed On The Door Track, It Will Raise Automatically If Feel Something Under(Standard Components)

(2). Airbag Protection: Installed At The Bottom Of The Curtain, It Will Raise Automatically If Touch Something(Selective Components)

(3). Light Curtain Protection: It Is Composed By 12 Or More Than 12 Lights, The Height From 600mm To 180 mm, Provide More Protection(Selective Components)



7. Switch System: Button Switch(Standard Components), Pull Switch(optional Components), RemoteControl(optional Components), Magnetic Loop(optionalComponents), Radar Sensor(optional Components);







Related Doors









Packaging & Shipping

Packaged in rolls or cut into pieces with plastic film, and then in cartons or wooden case;

Also,pallet is available.

Shipped by sea;TNT; DHL; UPS; Fedex; etc.



Our Services

1. Your inquiry related to our products or prices will be replied within 24hours.

2. Well-trained and experienced staffs to answer all your enquiries in fluent English.

3. Offering the support to solve the problem in the application or selling period.

4. Competitive prices based on same quality.

5. Guarantee samples quality same as mass production quality. 6. Free samples can be offered for your test.





The Advantages

1. Low MOQ: One set is available for checking our quality first conveniently.

2. Good Quality: Your client satisfied on our quality. You can get good reputation from your market and obtain more orders.

3. Good Service: Our professional service before and after sale.

4. The reasonable price



5. Fast & Cheap Delivery: We have big discount from forwarder (Long Contract).

6. OEM is welcome



7.Big markets: Europe ,USA, Australia, middle east ,South Africa etc

8.Our main products are garage door opener,swing gate operator and sliding gate opener.

9.We specialize in Automatic door& gate opener for minimum 8 years.

10. Rich experience in selling and installing, also problem solving.



FAQ

Q1: What is your MOQ?

A:  Our min order is one 20ft fll container. Sample order is available but we there will be sample charge. We also suggest wooden cases package for protection during shipment.

Q2: What is the Max available size of the panels?

A: The max length of panels can be 11.9M to suit the 40ft container. The max width of panels is 550mm.

Q3: Do you have CE certification?

A: Yes, we do have CE certification. We have CE for our complete automatic garage doors.

Q4:  Can I get a sample of garage door for quality check?

A: Sample is available.

Q5:  How can I get a price of needed garage door?

A: Please give the exactly size and quantity of your required door. We can give you a detail quotation based on your requirements.

Q6:  What kinds of payment you accept?

A: We usually accept T/T, L/C, Western Union, etc. If you prefer other payments terms, please feel free to discuss with us.

Q7:  We want be your agent of our area. How to apply for this?
A: Please send your idea and your profile to any e-mails of us. Let's cooperate.

Q8: I am a small wholesaler, do you accept small order?
A: It's no problem if you are a small wholesaler, we would like to grow up with you together.
